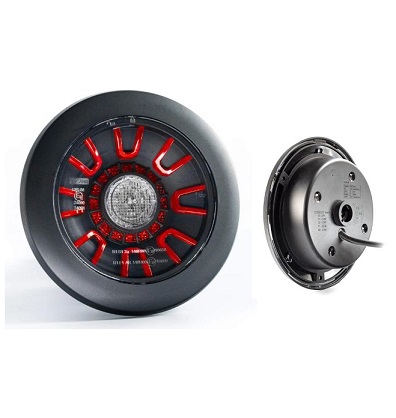

FT314- Fristom round led fog and reverse lamp (12-24V)
Dimensions: (Diameter) 155mm (Depth) 12/39mm 3D Design LED rear combination...
Dimensions: (Diameter) 155mm (Depth) 12/39mm 3D Design LED rear combination hamburger tail lamp Light can be recessed mounted or surfaced mounted with additional plinth Many Possible applications i...
Dimensions: (Diameter) 155mm (Depth) 12/39mm
3D Design LED rear combination hamburger tail lamp
Light can be recessed mounted or surfaced mounted with additional plinth
Many Possible applications including HGVs, Lorrys, Recovery Vehicles, Trucks, Buses, & Trailers
Article Information:
3D Design
Multi voltage 12v-36v
3 Function (Tail/Fog/Reverse)
Water and dust proof to IP69
Pre-wired with 1m cable with bare wire ends
E-Approved
Operating Temperature -40°C to +55°C
Wiring Instructions
White Wire: Earth/Ground
Black Wire: Position/Tail Light
Red Wire: Fog Light
Yellow Wire: Reverse
| Brand: | Fristom lighting |
|---|---|
| OE Part Number: | FT-314LEDBLACK |
| Internal Part Number: | CRL 314B |
| Stock Status: | Call for Availability |
| Contact Email: | sales@bdloriginalltd.co.uk |
| Contact Telephone: | 01782 479 783 |
