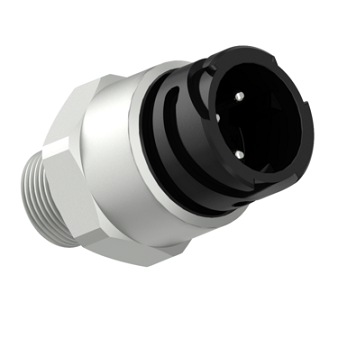

5801685684 Iveco-kogel pressure sensor
Vehicle Application: Iveco, KogelCriteriaCalculated Volume (dm³)0.0528 Elec...
Vehicle Application: Iveco, KogelCriteriaCalculated Volume (dm³)0.0528 Electrical connectionBayonet DIN 72585 A1-3.1-Sn/K2 Hysteresis0.2% FS Linearity0.2% FS Max. operating pressure16.0 bar Measuring...
Vehicle Application: Iveco, Kogel
Criteria
Calculated Volume (dm³)0.0528
Electrical connectionBayonet DIN 72585 A1-3.1-Sn/K2
Hysteresis0.2% FS
Linearity0.2% FS
Max. operating pressure16.0 bar
Measuring range0 to10.00 bar
Port thread 0M16 x 1.5
Port threadsM16 x 1.5
Predominance0.5 V
Product categoryDevice
Protection classIP6K7/IP6K9K
Rated current15 A
Sealing8114010574
Sensitivity0.40 V/bar
Technical specificationOE specification
Temperature range-40°C to +80°C
TypePiezo-Resistive
VersionWithout sealing
Voltage5 V
Size (mm x mm x mm)32 x 55 x 30
UPC193133281375
Weight (kg)0.036
Weight (lb)0.079366
| Brand: | WABCO |
|---|---|
| OE Part Number: | 4410441100, 5801685684, 65034866 |
| Internal Part Number: | CPS 684 |
| Stock Status: | Ordered Upon request |
| Contact Email: | sales@bdloriginalltd.co.uk |
| Contact Telephone: | 01782 479 783 |
