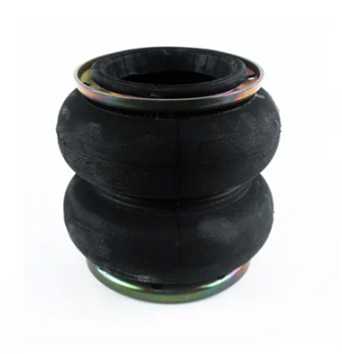

W013586923 Firestone double convoluted air spring
Application: IndustrialAIRSTROKE ACTUATOR Maximum Diameter @ 100 PSIG (inch...
Application: IndustrialAIRSTROKE ACTUATOR Maximum Diameter @ 100 PSIG (inches) 9.9 Maximum Height (inches) 9.1 Maximum Stroke (inches) 6 Minimum Usable Height (inches) 3.1 Force @ 80PSI at Stroke of 1...
Application: Industrial
AIRSTROKE ACTUATOR
Maximum Diameter @ 100 PSIG (inches) 9.9
Maximum Height (inches) 9.1
Maximum Stroke (inches) 6
Minimum Usable Height (inches) 3.1
Force @ 80PSI at Stroke of 1 Inch (pounds) 3790
Force @ 80PSI at Stroke of 3 Inch (pounds) 3180
Force @ 80PSI at Stroke of Maximum Stroke (pounds) 1770
Style Cross-Ref Equivalent High Strength Style Number 202
Style Cross-Ref Extended Height (Similar End Closure) Style Number 20-2
Material 2-Ply Standard Cord
END CLOSURE DETAILS
Bead ring Type 4
Bolt Circle Diameter (inches )6.31
# of Bolts (each ring) 8
AIRMOUNT ISOLATOR
Design Height 8.5
Load (at Design Height) at: 40 psig (pounds) 990
Load (at Design Height) at: 60 psig (pounds) 1540
Load (at Design Height) at: 80 psig (pounds) 2130
Natural Frequency (@80 psig) (cpm) 116
% of Isolation at Forced Frequency 400 CPM 90.7
% of Isolation at Forced Frequency 800 CPM 97.8
% of Isolation at Forced Frequency 1500 CPM 99.4
| Brand: | FIRESTONE |
|---|---|
| OE Part Number: | W01-358-6923, W013586923, W0/358/6923 |
| Internal Part Number: | CAB 6923 |
| Stock Status: | Ordered Upon request |
| Contact Email: | sales@bdloriginalltd.co.uk |
| Contact Telephone: | 01782 479 783 |
