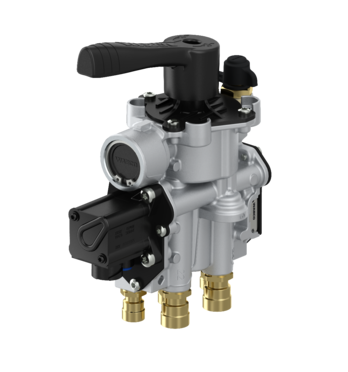

4630903160 Wabco air suspension control valve (Raise-lower valve)
CriteriaWeight (lb)4.079Weight (kg)1.85 UPC 193133501916 Size (mm x mm x mm...
CriteriaWeight (lb)4.079Weight (kg)1.85 UPC 193133501916 Size (mm x mm x mm) 186 x 92 x 248 Voltage 24 V Type 2-circuit Temperature range -40 to +65 °C Technical specification OE specification System...
Criteria
Weight (lb)4.079Weight (kg)1.85
UPC 193133501916
Size (mm x mm x mm) 186 x 92 x 248
Voltage 24 V
Type 2-circuit
Temperature range -40 to +65 °C
Technical specification OE specification
System Height limitation
Rated current 0.34 A
Protection class IP 6K9K
Product category Device
Port thread 24Ø 12 x 1.5
Port thread 23Ø 8 x 1
Port thread 22Ø 8 x 1
Port thread 21Ø 8 x 1
Port thread 1-1Ø 8 x 1
Port thread 1Ø 8 x 1
Mounting4× M8
Max. operating pressure10.0 bar
Handle length122 mm
Electrical connection DIN 72585-A1-3.6-Sn/K2
Distance between holes 56.6x56.6 mm
Calculated Volume (dm³) 4.244
| Brand: | WABCO |
|---|---|
| OE Part Number: | 4630903160, 2281213 |
| Internal Part Number: | CLV 213 |
| Stock Status: | In stock |
| Contact Email: | sales@bdloriginalltd.co.uk |
| Contact Telephone: | 01782 479 783 |
