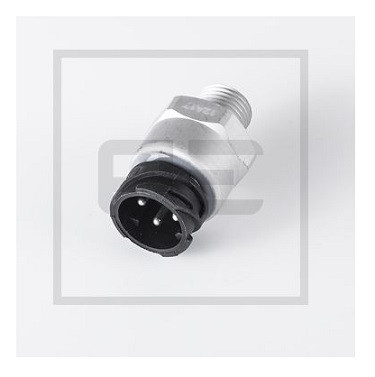

4410441010 Iveco-Scania pressure sensor
Vehicle Application: DAF, Iveco, MAN, Mercedes, Scania, Schmitz cargobullCr...
Vehicle Application: DAF, Iveco, MAN, Mercedes, Scania, Schmitz cargobullCriteriaCalculated Volume (dm³) 0.048 Electrical connection Bayonet DIN 72585 A1-3.1-Sn/K2 Hysteresis 0.2% FS Linearity 0.3% F...
Alternatives
Vehicle Application: DAF, Iveco, MAN, Mercedes, Scania, Schmitz cargobull
Criteria
Calculated Volume (dm³) 0.048
Electrical connection Bayonet DIN 72585 A1-3.1-Sn/K2
Hysteresis 0.2% FS
Linearity 0.3% FS
Max. operating pressure 16.0 bar
Measuring range 0 to 10.00 bar
Port thread 0 M16 x 1.5
Port threads M16 x 1.5
Predominance 0.5 V
Protection class IP6K7/IP6K9K
Rated current 15 mA
Sealing 8114010574
Sensitivity 0.40 V/bar
Technical specification OE specification
Temperature range -40°C to +80°C
Type Piezo-Resistive
Version Without sealing
Voltage 24 V
Size (mm x mm x mm) 55 x 29 x 30
This product is fully interchangeable with original equipment (OE). This is not a genuine part unless stated.
All products are covered by the manufacturer's 12 month warranty.
Any manufacturer or OE part numbers are listed for cross reference and identification purposes only, protected as nominative fair use and in no way imply that this is a genuine part or that we are affiliated with the manufacturer in anyway.
| Brand: | WABCO |
|---|---|
| OE Part Number: | 0035422518, 1296494, 1448083, 1506009, 1526532,1781199, 504376765, 81274210163, 81274210268, 98472891, 4410441010 |
| Internal Part Number: | CPS 199W |
| Stock Status: | In stock |
| Contact Email: | sales@bdloriginalltd.co.uk |
| Contact Telephone: | 01782 479 783 |
