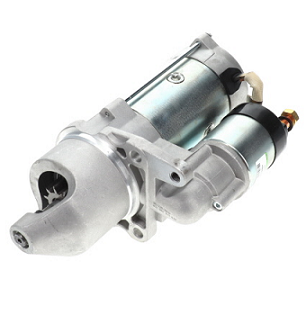

1707580- LF STARTER MOTOR
Vehicle Application: LFCriteria Voltage 24 V Teeth Quant. 10 Starter...
£316.66
Vehicle Application: LFCriteria Voltage 24 V Teeth Quant. 10 Starter Output 4 kW Connector type Earth return, Grounded Bolt Hole Circle Ø 127 mm Quantity 1 Rotation Direction Clockwise rotation...
Alternatives
£337.77

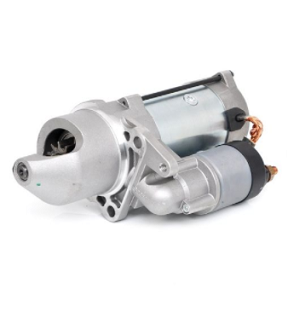

0001251007-1707580- LF STARTER MOTOR
Call for availability
Vehicle Application: LF
Criteria
Voltage 24 V
Teeth Quant. 10
Starter Output 4 kW
Connector type Earth return, Grounded
Bolt Hole Circle Ø 127 mm
Quantity 1
Rotation Direction Clockwise rotation
Connector / Clamp with 50(Jet) clamp, B+, B-
Weight 7,023 g
Flange Ø 88.9 mm
Design by PE BL
Housing Diameter 87 mm
Closing Angle 315 °
Specification GR
Pinion Home Position 47.5 mm
Supplementary Info: Alternate brand available see CSM 580B
| Brand: | PRESTOLITE |
|---|---|
| OE Part Number: | 1707580, AENC483, 861385 |
| Internal Part Number: | CSM 580 |
| Stock Status: | In stock |
| Contact Email: | sales@bdloriginalltd.co.uk |
| Contact Telephone: | 01782 479 783 |
